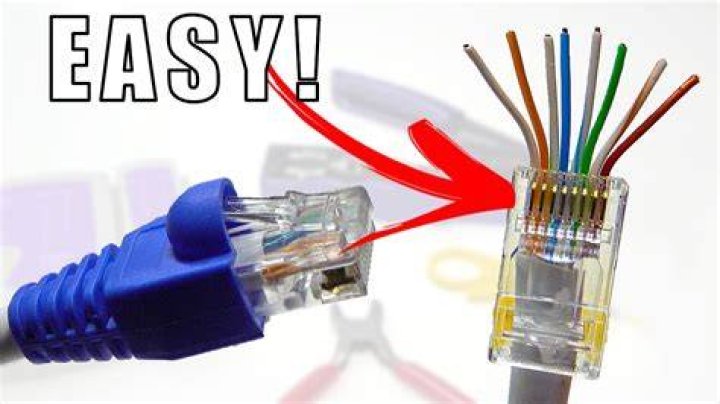

How do I install Internet cable ends?
Mia Moss updates
- Step 1: Strip the cable jacket about 1.5 inch down from the end.
- Step 2: Spread the four pairs of twisted wire apart.
- Step 3: Untwist the wire pairs and neatly align them in the T568B orientation.
- Step 4: Cut the wires as straight as possible, about 0.5 inch above the end of the jacket.
Also asked, is Ethernet faster than WIFI?
Ethernet is just plain faster than Wi-Fi—there's no getting around that fact. On the other hand, a wired Ethernet connection can theoretically offer up to 10 Gb/s, if you have a Cat6 cable. The exact maximum speed of your Ethernet cable depends on the type of Ethernet cable you're using.
Also, what is the color code for Ethernet cable? Crossover Cable Wiring Diagram:
| RJ45 Pin # (END 1) | Wire Color | Wire Color |
|---|---|---|
| 1 | White/Orange | White/Green |
| 2 | Orange | Green |
| 3 | White/Green | White/Orange |
| 4 | Blue | White/Brown |
Similarly, what is an Ethernet cable used for?
An Ethernet cable is the most common type of network cable used on a wired network whether at home or in any other business establishment. This cable connects wired devices together to the local network for file sharing and Internet access.
What is the difference between CAT 5 and CAT 6?
The big difference between Cat5 and Cat6 cables is the amount of data that can be sent. Cat6 has a higher bandwidth compared to Cat5. The computer is connected to the NAS with a Cat5 cable. The bandwidth of a Cat5 cable is 100 Mbps.
Does Ethernet use all 8 wires?
Gigabit Ethernet allows network transfers up to 1.000 Mbps using standard Cat 5 UTP (unshielded twisted pair) cabling. Ethernet Cat 5 cables have eight wires (four pairs), but under 10BaseT and 100BaseT standards (10 Mbps and 100 Mbps, respectively) only four (two pairs) of these wires are actually used.What is rj45 color code?
There are two wiring standards for RJ-45 wiring: T-568A and T-568B. Although there are 4 pairs of wires, 10BaseT/100BaseT Ethernet uses only 2 pairs: Orange and Green. The other two colors (blue and brown) may be used for a second Ethernet line or for phone connections.Can I plug a cat5 cable into a cat6 Jack?
Short answer, yes. Long answer, yes, but you will not get Cat 6 Speeds (Obviously) and you might have some issues if the keystone is expecting a heavier Gauge Wire. The mating form factor is also the same: CAT5, CAT5e, or CAT6 plugs will insert and connect to CAT5, CAT5e, or CAT6 jacks just fine.Is rj45 a cat6?
RJ45 will work on Cat6, but there are different types of RJ45 jacks. Some have metal shielding for grounding the cable, some are all plastic, some have plasticy/rubbery 'jackets', some are better quality, some are worse quality.What is Cat 6 cable used for?
Cat-6. Short for Category 6, Cat-6 network cabling is used as the cabling infrastructure for 10BASE-T (Ethernet), 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet, or GbE) and 10GBASE-T (10-Gigabit Ethernet, or 10 GbE) networks.How do I install rj45 connectors?
Pinch the wires between your fingers and straighten them out as shown. The color order is important to get correct. Use scissors to make a straight cut across the 8 wires to shorten them to 1/2 Inch (1.3 cm) from the cut sleeve to the end of the wires. Carefully push all 8 unstripped colored wires into the connector.What is rj45 cable?
RJ45 is a type of connector commonly used for Ethernet networking. Since Ethernet cables have an RJ45 connector on each end, Ethernet cables are sometimes also called RJ45 cables. The "RJ" in RJ45 stands for "registered jack," since it is a standardized networking interface.Is rj45 the same as Ethernet?
RJ45 vs CAT5What most people don't know is that although these terms are often used to refer to the same cables, they are not the same. RJ45 is the electrical interconnection standard that defines the connector and how the wires are arranged at the end of the cable while CAT5 is a standard regarding Ethernet cables.How do I connect my Ethernet cable to my wireless router?
Connect one end of one Ethernet cable into the back of the modem, then connect the other end into the Wide Area Network (WAN) port on the router. Connect the router power cord into an electrical outlet, then connect the other end to the router.What is the difference between cat5 and cat5e?
The difference between Cat5 and Cat5e is that the Cat5e has a higher throughput speed of 1,000 Mbit / s. Also called Gbit / s. This is 10 times faster than the throughput speed of a Cat5 cable. If you are in doubt between a Cat5 or Cat5e cable, we can advise you to go for the Cat5e cable.How do I install cat5 cable in my house?
- Step 1: Initial Considerations and Planning.
- Step 2: Required Tools and Materials (and Costs)
- Step 3: Mount the Wall Plates.
- Step 4: Measure and Run the Cables.
- Step 5: Connect the Wires to the Jacks and Patch Panel.
- Step 6: Test Your Connections.
- Step 7: Connect to the Internet.
What is Ethernet connection?
Ethernet is the traditional technology for connecting wired local area networks (LANs), enabling devices to communicate with each other via a protocol -- a set of rules or common network language. An Ethernet cable is the physical, encased wiring over which the data travels.What is RJ 45 connector?
Registered Jack 45 (RJ45) is a standard type of physical connector for network cables. RJ45 connectors are most commonly seen with Ethernet cables and networks. Modern Ethernet cables feature small plastic plugs on each end that are inserted into the RJ45 jacks of Ethernet devices.How do I connect an Ethernet cable to my TV?
How to connect- find the Ethernet port on the back of your TV.
- connect an Ethernet cable from your router to the port on your TV.
- select Menu on your TV's remote and then go to Network Settings.
- select the option to enable wired internet.
- type your Wi-Fi password using your remote's buttons.
What is the best Ethernet cable?
The best Ethernet cables at a glance- Vandesail Ethernet Cable — Cat 7.
- Mediabridge Ethernet Cable — Cat 6a.
- AmazonBasics RJ45 Ethernet Cable — Cat 6.
- CableGeeker Flat Black 100FT Cable with Sticky Clips — Cat 6.
- Cables Direct Online 30FT Cable — Cat 5e.
When would you use a crossover cable?
Crossover cables are used when:- Connecting a computer to a computer.
- Connecting a router to a router.
- Connecting a switch to a switch.
- Connecting a hub to a hub and.
- Connecting a router to a PC because both devices have the same components.
